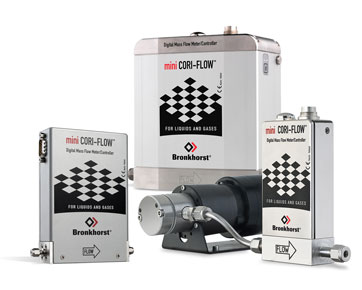

MINI CORI-FLOW™ CORIOLIS MASS FLOW METERS & CONTROLLERS
Mass Flow Measurement of low flow rates, independent of fluid properties
With the development of the mini CORI-FLOW™ series Bronkhorst achieved a technological breakthrough in Coriolis mass flow measurements and control, by realising a compact, cost-effective Coriolis Mass Flow Meter/Controller for accurate measurement and control of (very) low flow rates. The unique design of the miniature Coriolis sensor features unsurpassed performance, even with changing operating conditions in pressure, temperature, density, conductivity and viscosity.

Contrary to many other Coriolis flow meters on the market, mini CORI-FLOW™ offers integrated PID control and close-coupled control valves or pumps, thus constituting very compact, cost- and space-saving, precise Coriolis Mass Flow Controllers.

 Lowest range 0,05…5 g/h
 Highest range 3…300 kg/h
Features
 - Direct mass flow measurement, for liquids and gases
 - High accuracy, excellent repeatability
 - Cost-effective design
 - Compact design, with integrated PID controller for fast and stable control
 - Now suitable for (very) low flow ranges
 - Digital technology allows fieldbus communication and offers user configurable control characteristics
 - Option: ATEX approval Cat.3, Zone 2
 - Option: KCs certificate (Protection Ex nA IIC T4)

Applications
The instruments are suited for a wide variety of applications, e.g. in:
 - Analytical systems
 - Dosing of additives in food and beverage industries
 - (Petro-) chemical installations
 - Pilot plants
 - CVD/Coating systems
 - Semiconductor processing


Application stories

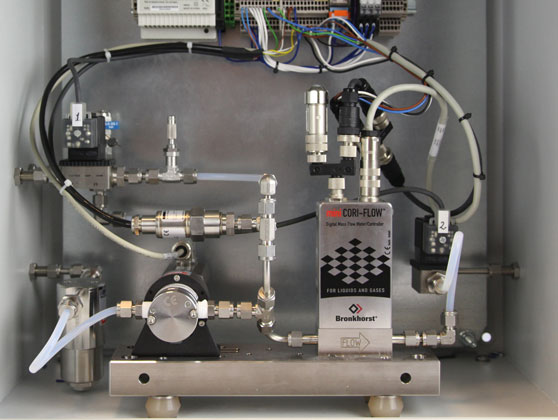

 - Dosing of additives, such as flavours and fragrances
 - Test bench for fuel testing
 - Better control of your microbiological process
 - Coriolis Mass Flow Meter used for flow pressure simulation to test bioresorbable sealant patches
